Botanical Macro Photography

Photographing plants in their natural settings takes a bit of practice. Plants can’t run away and hide, so they seem like easy targets. But most are always in motion, even in apparently still air. Flowers are often bright against a much darker background, presenting exposure challenges. Plants are often enmeshed in a tangle of other plants, making it hard to distinguish the subject from its sur­roundings. This article presents some techniques for getting good close-ups of plants.

Camera Types. There are several camera types in common use today:

  Deep depth of field example


Usually there isn’t enough depth of field in macro photos. But point-and-shoots sometimes provide a little too much.

This photo of Bishop’s caps was taken with a point-and-shoot camera in macro mode. Each flower is only about a quarter inch across. The smaller sensor’s deeper depth of field is evident, because the house in the background is about 20 feet distant, and in relatively sharp focus.

ILCs produce better results than point-and-shoots, but require more practice and more expensive gizmos. This article is about ILCs. Although I have Nikon gear, I have tried to ensure that this article applies to all ILCs. ILCs come in two flavors: those with “full frame” sensors (same size as traditional 35 mm film) and those with smaller sensors about 2/3rds as large. Both have unique advantages and both produce great results. The smaller sensor gives you about a 50% increase in magnification and deeper depth of field. The larger sensor provides more resolution. I usually use a macro lens, a 60 or 105 mm, for close-ups. If I am close to the subject, I use flash to isolate the foreground subject, to freeze motion, to eliminate white balance problems for more accurate colors, and to bring out surface texture. Flash also avoids the need for a tripod.

But the results aren’t always perfect. Frequently the plant shows a bit of motion blur. Flash is supposed to freeze motion, so where does the blur come from? Turns out it is a result of how shutters work.

Shutters and flash.

Shutter diagram
A shutter contains a curtain that opens to admit light to the sensor. (We’re talking mechanical shutters here, not electronic shutters.)
Shutter diagram
When you take a photo, the curtain slides aside to allow light to pass to the sensor. In reality, the curtain is composed of many overlapping segments so that it doesn’t take up much space when open.
Shutter diagram
But there’s a problem. The end of the sensor furth­est away from the curtain gets light for a longer time than the other end does, so the exposure won’t be uniform. This is easily solved with two curtains though.
Shutter diagram
First, the camera opens one curtain completely while the second remains closed. Next, the first curtain closes while the second opens, so they are both moving in the same direction.
Shutter diagram
At the end of the exposure, the second curtain closes, and each part of the sensor receives the same amount of light. But curtains are mechanical, and mechanical things can only move so fast. It takes about 1/60th of a second to open. The curtains operate a bit differently for shorter exposures. Here, we get a 1/120th second exposure by starting to close the second curtain when the first is only half open. A band of light moves across the sensor, illuminating each part for 1/120th of a second.
Shutter diagram
To get very short exposures, such as 1/1000th of a second, the two curtains are closer together, ad­mitting only a narrow slice of light.
Shutter diagram
This approach works fine for natural light, but the rules change radically for flash. Xenon flash tubes produce a brief, intense flash lasting as little as 1/40,000th of a second. So if we set the camera to a 1/1000th second exposure, the flash fires for such a short time that the curtains barely move during the flash interval. Thus the flash illuminates only the narrow band the curtains are over at the moment of discharge. The result is a stripe of light against an otherwise black background. Not good.
Motion blur photo

Two photos in one: a photo frozen with flash, superimposed on a blurred photo taken with ambient light.



Thus the camera must be set to an exposure time that is long enough for both curtains to be entirely open at the time the flash fires. This is somewhere between 1/60th of a second and an absolute minimum of 1/320th of a second, depending upon the camera. We’ll call this the minimum flash shutter time, or just the minimum. In a dark room, a minimum exposure doesn’t let in much of the natural light because there isn’t much around. But in a sunlit setting that’s a very long time. Using a flash in daylight produces two images in one: a minimum exposure made in natural light, plus a ≈1/10,000th second exposure from the flash. This can be a good thing if the subject is still, because the flash fills in the heavy shadows in a sunlit scene. But if the subject is in motion, this is bad. The minimum is enough time for the flowers to sway in the wind, so the photo shows motion blur, like this.

The first strategy to combat motion blur is to close down the aperture and admit less background light. Instead of shooting at, say, ƒ/8, shoot at ƒ/22. The camera should also be set on its minimum ISO, since this reduces light sensitivity and improves image quality. These steps ac­complish three important goals at once. First, they reduce motion blur as we discussed. Second, they isolate the brightly lit subject from the darker, more distant back­ground. Third, they increase depth of field: more of the close-up image is in focus. With macro lenses, depth of field is sharply limited, making it very hard to get much of the plant in focus. Purists maintain that closing down the aperture that far introduces diffraction blur that limits sharpness, but this effect is modest relative to the benefits.

Photo at f/5.6 Photo at f/22

Photos taken at ƒ/5.6 (top or left) and ƒ/22. The first photo is slightly sharper where perfectly focused, but this is only perceptible at high enlargement. The second has much improved depth of field.

Wait! We’ve set the ISO, the aperture, and the exposure time by hand. Isn’t that ... dare I ask? ... manual mode? And isn’t manual mode for fanatics? Well sort of, but manual mode is the simplest solution to the problem. When using flash we have to set the exposure time to whatever is recom­mended by the manufacturer, say 1/250th of a second. It is always best to use the manufacturer’s minimum recommended ISO, which typically varies from 50 to 200. All that leaves is the aperture, and we have already seen reasons to set that to a specific value as well.

Ring flash example

A pink lady’s slipper, illuminated from both sides by a ring flash.



Ring flash. There is another problem with macro. In most cameras, the built-in flash is positioned for normal use, not close-ups. Built-in flashes may wash out their subject, or may even be partially eclipsed by some macro lenses. Add-on flashes may be sharply angled away from the camera’s line of sight. (If you have such a flash, you can mitigate this with a diffuser.) Ring flashes with xenon flash tubes are a better alternative. A ring flash mounts a couple of flash units aside the end of the lens. The light from these units is exactly where you need it, and most ring flashes allow you to adjust the intensity of each flash separately. You can use light from only one flash to emphasize texture, for example, when photographing coins. For plants, I get very nice results with both flashes enabled.

Ring flashes are a bit awkward and a bit fragile. But for macro they excel. Ring flashes made by Nikon and Sigma are no longer available, so when my Sigma flash wore out, I got a closely similar Meike MK-14EXT TTL Macro Ring Flash. It works very nicely too.

LED-based flash units are cheaper, but they pro­duce a much smaller amount of light for a longer period to get the same total amount of il­lum­ination. This means they cannot freeze motion like a xenon flash. LED flash units may fire for as long as 1/5 second, easily enough for camera or subject motion to cause blur, and weak enough so that outside light overpowers the flash. Hence they are unsuitable for this kind of work.

Geotagging. If you are interested in tracking species in various locales, the ability to geotag photos, capturing the locations where they are taken, has obvious advantages. But what’s the deal? Why does every cell phone know pretty much exactly where it is, while most ILC cameras haven’t got a clue? Turns out there is a good reason. When you activate a GPS device, it establishes contact with as many as seven GPS satellites in order to get an accurate fix on where you are. This takes awhile, quite awhile. It can be done much more quickly if you have a rough idea of your location. Cell phones get that from knowing the location of the local cell towers. Cameras aren’t generally equipped with cell access though. So when you turn on a camera, it can take many many seconds to establish a fix, making it pretty much useless for many types of shooting. As a result, most ILCs lack GPS.

But wait, there’s more. Recent cameras are often equipped with BlueTooth, which makes it possible for them to ask your phone where you are. That’s a great solution, because your phone always knows its position. If you are buying an ILC, look for a model that can get GPS coordinates from your phone. For example, Nikon offers a SnapBridge app that runs on your phone and provides this data, along with other features like remotely controlling the camera.

Focus. Many macro photographers prefer manual focus, since depth of field is so limited that careful attention to focus is critical. I pretty much agree with this, but I rely on autofocus nonetheless. I disable the autofocus function that focuses when the shutter button is half-pressed though. Instead, I press a separate button to focus, called AF on Nikon bodies. This brings the focus close to where I want it. Then I simply move the entire camera back and forth a short distance to select the most suitable focal plane. Occasionally I can be seen, head bobbing back and forth like a cobra’s, trying to follow a swaying plant.

Macro lenses. Why bother with macro? The features necessary to reliably identify plants are usually small, even on large plants like trees, and there is no substitute for a clear, magnified image. Besides, there is a great deal of beauty just below the usual threshold of our attention, and close-ups reveal it. About 99 out of every 100 of the photos I take employ a macro lens.

  Nikon 60 mm macro lens


Nikon 60 mm macro lens.

Most macro lenses magnify about the same amount: 1:1, meaning the image on the sensor is actual size. So how do you choose a lens? Nikon makes four sizes, for example: 40, 60, 105, and 200 mm. These focal lengths determine how far you must be from your subject to achieve a given degree of mag­ni­fi­cation, not how much magni­fication you can achieve. Most people prefer the 105 mm, but I usually shoot with this 60 mm Nikon Micro-Nikkor lens.

It means that the closest point of focus is about 3 inches from the end of the lens, a problem if your subject is a white-faced hornet’s nest. But it also means that the light from the flash is so close to the subject that it swamps background light, pro­ducing perfectly frozen images. Also, a 60 mm is wide enough to double as a normal shooting lens. A 105 mm lens increases the closest shooting distance to a foot or so. A 200 mm increases it further, to several feet, at the expense of added weight.

  Laowa 2.5-5X macro lens


Laowa 2.5-5X macro lens.

I said above that most macro lenses magnify 1:1. Laowa makes some enitrely unique specialty lenses though, such as this well-made 25 mm f/2.8 2.5-5X Ultra Macro lens. The lens looks weird, since the wide end attaches to the camera body. At magnifications this high, macro rails and focus stacking are almost mandatory. The lens has manual focus and manual aperture, though for most applications this is not a handicap.

Extension tubes

Kenko extension tubes.



Extension tubes. These hollow tubes of various lengths move your lens further away from the image sensor, providing more magnification. However, depth of field is even more limited, and the optics are imperfect, so I don’t use extension rings in the field. But if you are photo­graphing small items such as seeds indoors, you can use extension rings to get higher levels of mag­nification. How can a hollow tube have imperfect optics? It can’t. But lenses are designed to function optimally at a fixed distance from the sensor, so a bit of distortion is introduced when you alter this distance. Extension tubes are by far the cheapest way to achieve higher magnification on ILCs.

Macro focusing rails.

You can obtain finer control over focus using macro focusing rails, if they are mounted on a sturdy tripod. These are adjustable screw drives upon which you mount the camera. Don’t scrimp through—inexpensive macro rails like this one from Adorama lack precise enough control.    Macro rails
The Cognisys StackShot Macro Rail Package is at pre­sent the Rolls Royce of macro rails, a precisely controlled motorized macro rail that can be operated by the included controller or by host software on a computer. You program it by picking a starting and ending focus distance, and an increment between. The StackShot then takes multiple photos, even 100 or more, moving ahead a tiny distance between each. The resulting images are loaded into a computer and focus stacked, using software such as ZereneStacker. This means that the subject must be absolutely static during the sequence of photos. That rules out most herbaceous plants and even mosses, which wilt quickly. Grasses, seeds, and lichens often work well. This isn’t a great choice for field use, since it is awkward to set up, and requires AC power unless you rig up a battery source. I use it at home.

   StackShot

Depth of field. Getting the “right amount” of depth of field is a challenge for all photographers. A portrait photo­grapher might choose narrow depth of field intentionally, to highlight a person’s eyes while soft­ening their face. A sports photographer might do the same, getting a soccer player in sharp focus while softening the audience in the background. But for macro photographers, there is never enough depth of field. This is the biggest single limitation on macro photography, and the reason why even higher mag­nification lenses are rarely used. The closer you are to the subject, the more limited the range of distances that appear in perfect focus. With a 60 mm lens on a full frame sensor, you may only have a centimeter or two of depth that is in focus. Longer lenses improve on this a bit.

You can improve depth of field in several ways:

Exposure. Flowers are meant to attract pollinators, and most of the tricks plants use to do that attract our attention too. But those bright flowers against a dark background also confuse the exposure meter. Cameras usually calculate exposure based on the entire scene, but for flower photos it is usually best to enable “spot metering” and center the spot over a flower. Typically, I:

Here’s where it gets tricky though. When you spot meter on a target, you are telling your camera “this is the item that should come out in the middle of the brightness range,” not “this is something bright.” That means that if the flower fills the whole region the meter is watching, you will underexpose the flower and way underexpose the background. If you see underexposed photos, you can turn up the exposure compensation, use center-weighted meter­ing instead of spot metering, or spot meter on a spot that also includes some background. (Center-weighted meter­ing is simply a bigger spot.) There is no sub­stitute for practice here.

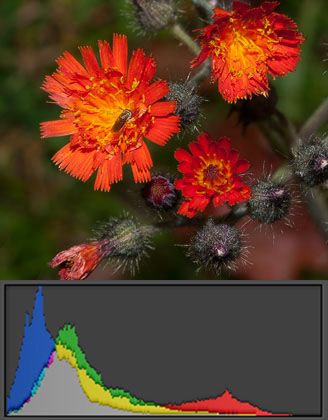

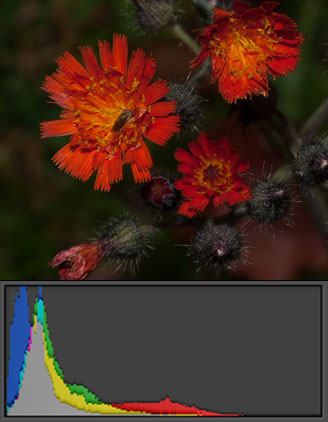

Spot metering on the largest of the orange hawkweed flowers pro­duces an underexposed result, as you can see from Lightroom’s histogram, beneath. The second image was corrected in Lightroom. The scene is still appears a bit underexposed, because flower details begin to wash out if they are too bright. The histogram is stretched out, covering most of the range, a good sign.

Raw shooting. Lots of people insist that the exposure and composition should be perfect before you shoot. Balderdash! I’m often huffing up a trail, hanging off a tree over a sharp drop, balancing on a squishy board­walk over a bog, or walking with my dog on her leash in one hand and a walking stick in the other. My wife is a hiker, intent on covering ground, not fussing over botanical photographs. So I’ve learned to shoot from the hip, figuratively at least, and sometimes literally. I always shoot in raw mode. The much increased dynamic range of raw mode provides much greater control when I use Adobe Lightroom later to compensate for what I didn’t get right in the field.

Pixels. I haven’t said a word about pixel counts because everybody lusts after megapixels, but few of us need them. They are good for when you need to blow images up to poster size or larger, something most of us have little call for. But high resolution is also useful for increasing magnification, or cropping out parts of an image that are distracting. So I get as many megapixels as I can afford. Here is a photo of a flowering grass and a full-resolution crop from it.

Grass photo

Cropped grass photo

Carrying gear. A heavy camera gets old fast after hanging around your neck for a few hours, and it flops around as you walk. Backpacks are too slow to deploy if you take a lot of photos. Neck bags just add weight. There are harnesses that hold the camera closer against your body, which I have not tried. My preference is a well-engineered belt holster called a SpiderPro Single Camera System. You screw a metal pin into a plate that attaches to the tripod mount, and use the pin to hang the camera, upside-down and pointing backwards, from your hip. This sounds almost comically awkward, but it works unbelievably well. In one fast motion I can remove the camera from the holster and pick it up, where it is then facing forward for a shot. This also means that the back of the camera is facing forward when it is holstered, so if the camera brushes against obstacles it is much less likely to be damaged. I have used this holster exten­sively and I am a big fan. In fact, I recently bought one that has slots for two cameras, one for macro, one for general purpose cameras.

Holster

The camera and ring flash together feel nearly weightless on my hip. The mounting plate for the holster uses the tripod connection, but can still be mounted on a tripod without first removing the plate. It is easy to deploy the camera in a continuous motion. That’s a plastic bag in the back pocket for passing rain showers.

Composition. My goal is to help people identify plants, so I try to capture at least two identifying char­acteristics in each photo. This ties together important features in the viewer’s mind. For example, leaves plus the way in which they connect to stems, or older and younger leaves, or flowers and the sup­porting structure under the flowers. I also try to isolate the plant from its surroundings, though this is often nearly impossible. Sometimes surroundings help. An acorn or pine needle might serve as a aid to determining the size of a mushroom. But too much simply confuses the eye. Try to take side views, not just top views. Take at least twice as many photos as you need and discard half.

Because depth of field is so limited, try to find camera orientations that put several features of interest in the same plane of focus. A triplet of flowers, taken from an angle that puts all three in focus, might look more appealing than a spray of flowers that are mostly blurred.

Picking up roots. Sometimes the simplest solution to a difficult shot is to pluck the plant and put it some­where that lets you photograph it. There are times when this is the only practical solution. But it almost always produces disappointing results. Plants con­tinuously hoover up water from their roots and pass it out through pores in the leaves, in a process called transpiration. It is this internal water pressure that keeps the plant rigid. Most plants quickly sag when picked or uprooted, looking deflated and sad. They don’t look like themselves any more. So I do this only as a last resort, for example, when there is some­thing important about the roots, or when the plant is best imaged by a scanner.

Mushroom identification demands attention to detail. You need to capture the top and bottom of caps, and the stem structure. Sometimes the buried part of the fruiting body is important, or a cross-section, or even the color of a bruise. Where they are growing is important: on living or dead trees, the species of tree, in the ground, etc. Sometimes it is necessary to take caps home, place them on a sheet of paper, and let them dry so they drop their spores. The color or even the microscopic shape of the spores helps with IDs. All of which means that you are disturbing the mushrooms you are encountering. I have seen mush­room hunt­ers leave depressing trails of carelessly kicked apart mush­room mounds. Take only what you need for ID (or for dinner, if you are an experienced forager).

Lichens have a clever protective layer that blocks excess light when there is too much or when it is too dry, to protect delicate photosynthetic machinery inside. In this state their colors are muted. During or after rains, this layer turns transparent, and lichen colors are more pronounced. Lichens are also more easily found in late winter or early spring, when there is less vegetation of other kinds. Mosses are also at their best after rains; they dessicate and fade during dry spells.

Scanners. Flatbed scanners are suitable for only a few types of plant photos. The problem is that scanners have very narrow depth of field, so the plant must be squished up against the glass to image well. This so badly distorts many plants that the result is disappointing at best. Scanning works for some grasses, a few small plants, some mosses, flowers too tiny to photograph by macro, and many seeds. Choose a contrasting background. I used a plastic backing sheet from a spiral bound notebook.

Scanner example

Many grasses image very well on the scanner, and may be greatly enlarged to illustrate detail.

Squished leaves example

Leaves, like these of Bishop’s Caps, look squished and unnatural.

Good scanner example Good example cropped

The velcro-like hooks on this catchweed bedstraw are nicely captured by the scan, especially in the cropped second image, and the plant still looks fairly natural.

Good scan example

This whorled loosestrife scan captures several identifying features of the plant, without quite reducing it to two dimensions.

Summary. You can take surprisingly good macro shots with a point-and-shoot camera. You can take great ones with an ILC, a macro lens, and the built-in flash. Start by shooting with flash in manual mode at ƒ/22 for closeups. For normal shots, like bushes or trees, shooting in automatic mode is as good a place to start as any—this is a separate topic for another day. If you want the best possible results, add a ring flash.
